Suction Hoses



 SUCTION HOSE

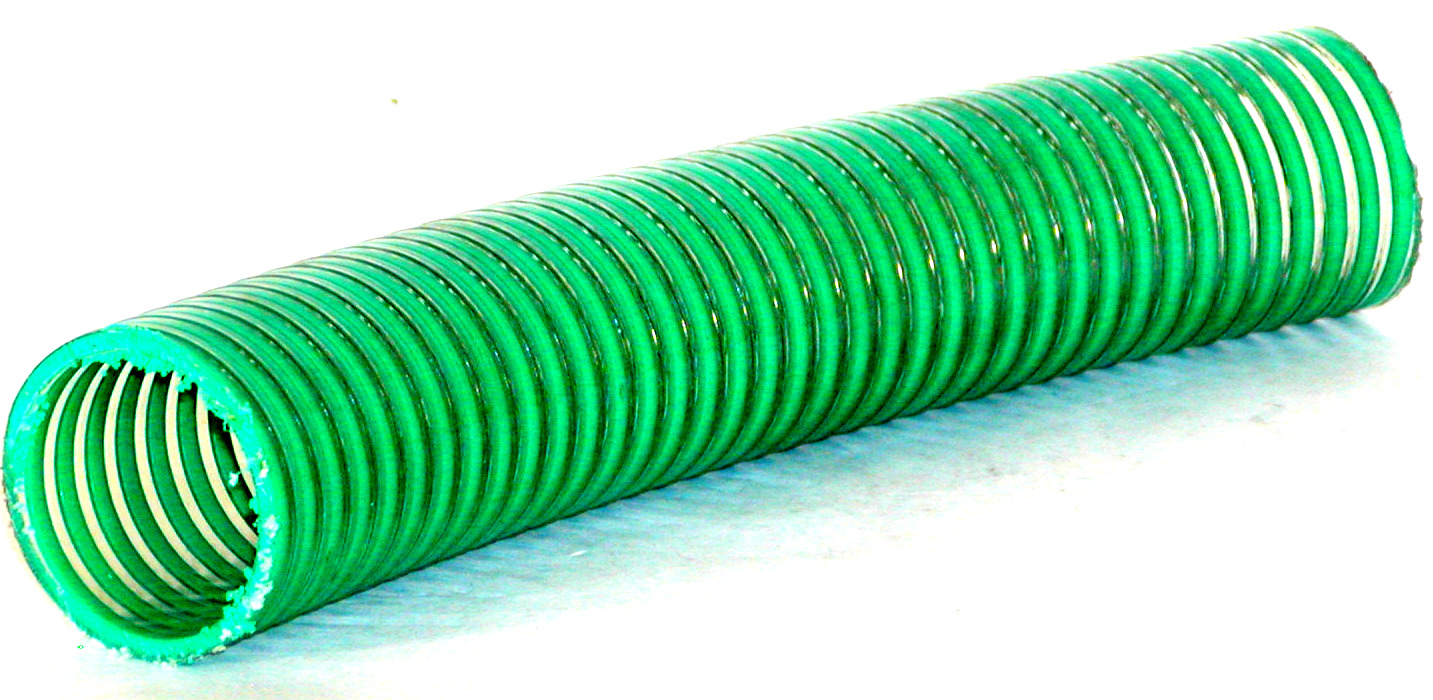

PVC WATER SUCTION HOSE. ALL FLEXIBLE PVC HOSE WITH GREEN HELIX. MADE OF HIGH QUALITY VIRGIN MATERIAL.  APPLICATION: WATER,SUCTION AND DISCHARGE  FOR INDUSTRIAL AGRICULTURE AND HOUSEHOLD USES. CAN BE USED FOR VARIOUS ABRASIVES AND LIQUIDS.

NUMBER

DESCRIPTION



15-1172

1" X100' SUCTION HOSE


15-1173

1 1/4" X 100' SUCTION HOSE

15-1174

1 1/2 X 100' SUCTION HOSE

15-1175

2" X 100' SUCTION HOSE

15-1176

2 1/2" X 100' SUCTION HOSE

15-1177

3" X 100' SUCTION HOSE

15-1178

4" X 100' SUCTION HOSE

15-1179

6" X 100' SUCTION HOSE

15-1180

8" X 100' SUCTION HOSE







COUPLED WITH NPT PIN LUG COUPLINGS



15-1182

1 1/2 X 25'










15-1543

1 1/2 X 50'

15-1544

1 1/2 X 100'

15-1183

2" X 25'

15-1545

2" X 50'

15-1546

2" X 100'

15-1885

2 1/2" X 50'

15-1886

2 1/2" X 100'

15-1887

3" X 50'

15-1888

3" X 100'

SUCTION HOSE COUPLED MALE X FEMALE

ALSO AVAILABLE WITH CAM & GROOVE FITTINGS

We currently also stock other models of suction hose re: food grade , rubber suction ,chemical transfer please call for details

 LARGE SIZES WITH 2 BANDS SMALLER SIZE'S SINGLE BAND





EPDM Rubber Standard Suction Hose

Black EPDM rubber tube with natural poly-ethylene helix, corrugated wall, smooth interior

General Applications

  • Transferring light chemical and fertilizer solutions
  • Septic solutions

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100 feet

NUMBER

DESCRIPTION



15-2121

1 1/2"


15-2122

2"

15-2123

2 1/2"

15-2124

3"

15-2125

4"


Rubber Corrugated Suction Hose

Rubber tube with back PVC helix, corrugated cover, smooth interior.

General Applications

  • Material Handling
  • Water/light chemical suction and transfer
  • Transferring moderate abrasives.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft - 8" 50ft

NUMBER

DESCRIPTION



15-2110

1 1/2"


15-2112

2"

15-2113

2 1/2"

15-2114

3"

15-2115

4"

15-1177

3" X 100' SUCTION HOSE

15-1178

4" X 100' SUCTION HOSE

15-1179

6" X 100' SUCTION HOSE

15-1180

8" X 100' SUCTION HOSE





Oil Resistant Corrugated PVC Suction Hose

Orange PVC with white helix. Corrugated wall, smooth interior

General Applications

  • General suction of light oils and animal fats
  • Good for use in environments where hose may be exposed to oils
  • Vapor recovery

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1-1/2" thru 4" 100 feet

NUMBER

DESCRIPTION



15-2116

1 1/2"


15-2117

2"

15-2118

2 1/2"

15-2119

3"

15-2120

4"



Rubber Standard Suction Hose

Rubber tube with back PVC helix, smooth cover, smooth interior

General Applications

  • Material Handling
  • Water/light chemical suction and transfer
  • Transferring moderate abrasives

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100 feet

NUMBER

DESCRIPTION



15-2243

1 1/2"


15-2244

2"

15-2245

2 1/2"

15-2246

3"

15-2247

4"



PVC FOOD GRADE
SUCTION & DISCHARGE HOSE

1" through 12" IDs

GENERAL APPLICATIONS

This FDA approved PVC suction hose is for handling in-plant and/or tank truck transfer of wine, beer, potable water, and other liquid foodstuffs. It conforms to USDA 3A standards for milk hauling and is an excellent choice for service in dairies, wineries, meat and poultry plants as well as numerous other food grade applications.

TEMPERATURE RANGE

-10°F to +130°F

NUMBER
DESCRIPTION
PSI
47-1100
1" Smooth PVC
100
47-1125
1-1/4" Smooth PVC
60
47-1150
1-1/2" Smooth PVC
60
47-2000
2" Smooth PVC
40



Contact us for information on sizes not listed.





PVC FOOD GRADE
CORRUGATED SUCTION & DISCHARGE HOSE

1" through 12" IDs

GENERAL APPLICATIONS

Corrugated PVC hose should be used where enhanced flexibility is desired. This FDA approved hose is an excellent choice for service in dairies, wineries, meat and poultry plants as well as numerous other food grade applications.

TEMPERATURE RANGE

-10°F to +130°F

NUMBER
DESCRIPTION
PSI
47-2100
1" Corrugated PVC
35
47-2125
1-1/4" Corrugated PVC
50
47-2150
1-1/2" Corrugated PVC
50
47-2200
2" Corrugated PVC
40



Contact us for information on sizes not listed.
